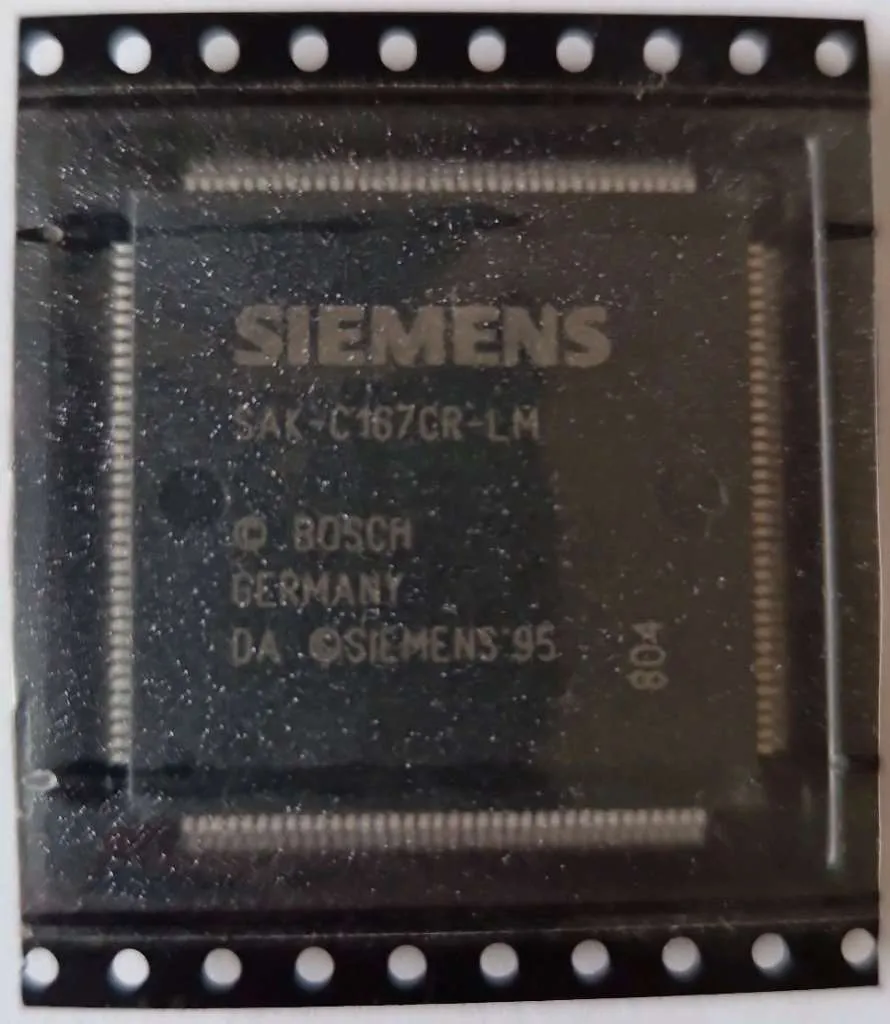

Zum Verkauf steht ein neu und originalverpackter Siemens (Infineon) Microcontroller des Typs SAK-C167CR-LM.

SAK-C167CR-LM Product details:

• High Performance 16-bit CPU with 4-Stage Pipeline

• 16-Priority-Level Interrupt System with 56 Sources, Sample-Rate down to 40/30 ns

• 8-Channel Interrupt-Driven Single-Cycle Data Transfer Facilities via Peripheral Event Controller (PEC)

• Clock Generation via on-chip PLL (factors 1:1.5/2/2.5/3/4/5), via prescaler or via direct clock input

• On-Chip Memory Modules

  – 2 Kbytes On-Chip Internal RAM (IRAM)

  – 2 Kbytes On-Chip Extension RAM (XRAM)

  – 128/32 Kbytes On-Chip Mask ROM

• On-Chip Peripheral Modules

  – 16-Channel 10-bit A/D Converter with Programmable Conversion Time down to 7.8 µs

  – Two 16-Channel Capture/Compare Units

  – 4-Channel PWM Unit

  – Two Multi-Functional General Purpose Timer Units with 5 Timers

  – Two Serial Channels (Synchronous/Asynchronous and High-Speed-Synchronous)

  – On-Chip CAN Interface (Rev. 2.0B active) with 15 Message Objects (Full CAN / Basic CAN)

• Up to 16 Mbytes External Address Space for Code and Data

  – Programmable External Bus Characteristics for Different Address Ranges

  – Multiplexed or Demultiplexed External Address/Data Buses with 8-Bit or 16-Bit Data Bus Width

  – Five Programmable Chip-Select Signals

  – Hold- and Hold-Acknowledge Bus Arbitration Support

• Idle and Power Down Modes

• Programmable Watchdog Timer and Oscillator Watchdog

• Up to 111 General Purpose I/O Lines, partly with Selectable Input Thresholds and Hysteresis

• Supported by a Large Range of Development Tools like C-Compilers, Macro-Assembler Packages, Emulators, Evaluation Boards, HLL-Debuggers, Simulators, Logic Analyzer Disassemblers, Programming Boards

• On-Chip Bootstrap Loader

• 144-Pin MQFP Package

• 176-Pin BGA Package1)

Weitere technische Daten und Details siehe Datenblatt.

Fabriksneu in geschlossener Blisterverpackung.

Privatverkauf, daher keine Gewährleistung oder Garantie sowie kein Umtausch bzw. Rücknahme.
